PSG - Powder Snow Generator - Equipment Package

Solkav is an integrated concept to make PSG Technology "work". Solkav offers the complete package for snow, ice and attractions to ensure your investment is also economically successful.

SNOW

Indoor Snow & Ice Rink Equipment Package

Equipment package

Snow storage underfloor concept on existing subfloor with supply of underfloor surfaces

The underbody must be well prepared.

to insulate the ground from below to prevent frost damage (at least in the icy ground area)

to make the floor waterproof

to have drainage within the snow area for the melting process

and to have an electric heating system (optional)

Solkav will supply all necessary drawings to ensure good performance.

Furthermore, special material is needed for the snow floor, which you most likely will not be able to obtain locally:

Drainage slabs on which

one can walk stably

which drainage openings do they have

and directs meltwater for drainage

Expansion pack with rocks, backlit foils, polar animals

Vorbereitung Platz

Snow Room Attractions Package

Package includes snow slides, tires, sleds, a snowman, and toys. A basic set of attractions is required to properly utilize the snow area.

Snow slide use

with toboggan

with tires

Children's tools

Shovel & bucket

Tractors & Trucks

Snow figures

snowman

Snow figures

houses

Needle

small house

We can offer you a package as follows for different sizes of snow surface

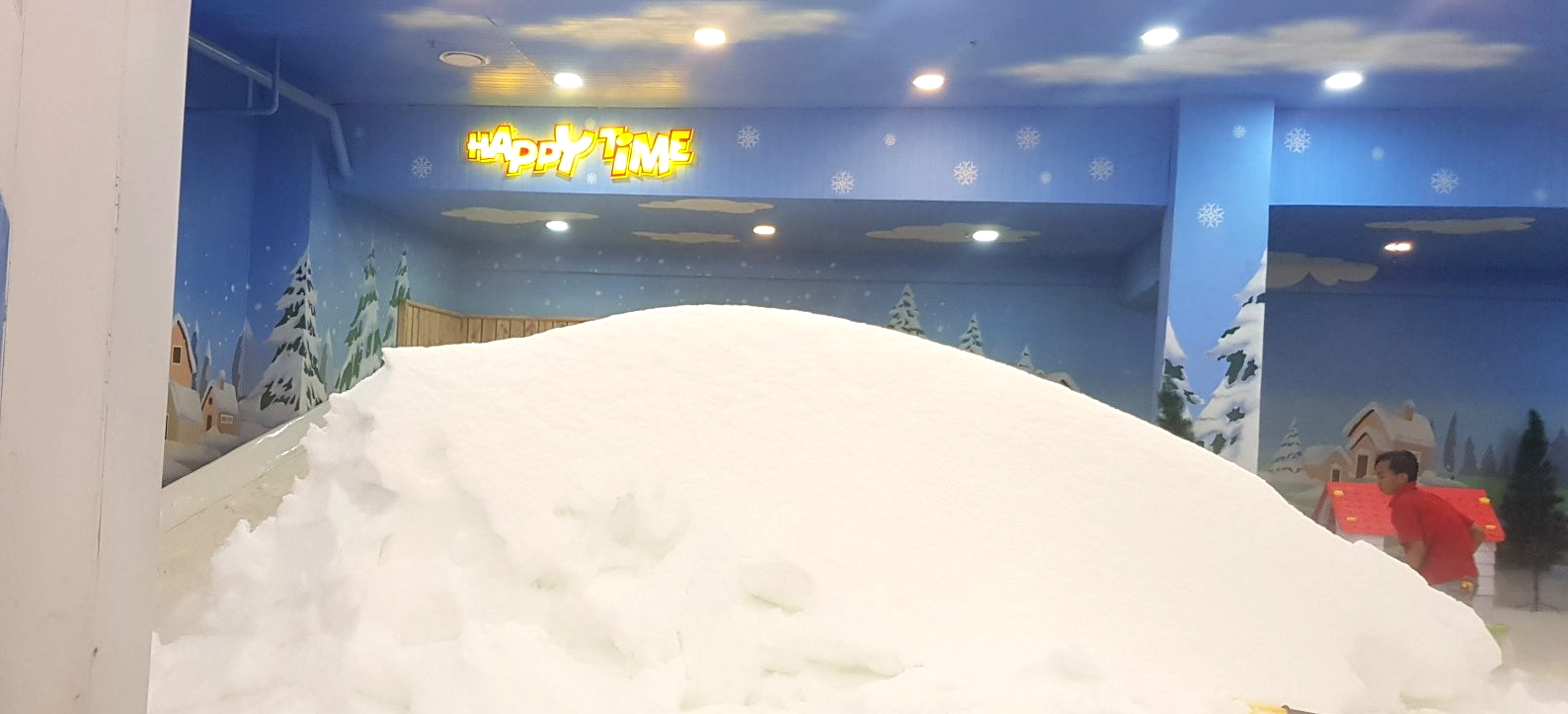

Schneeberg

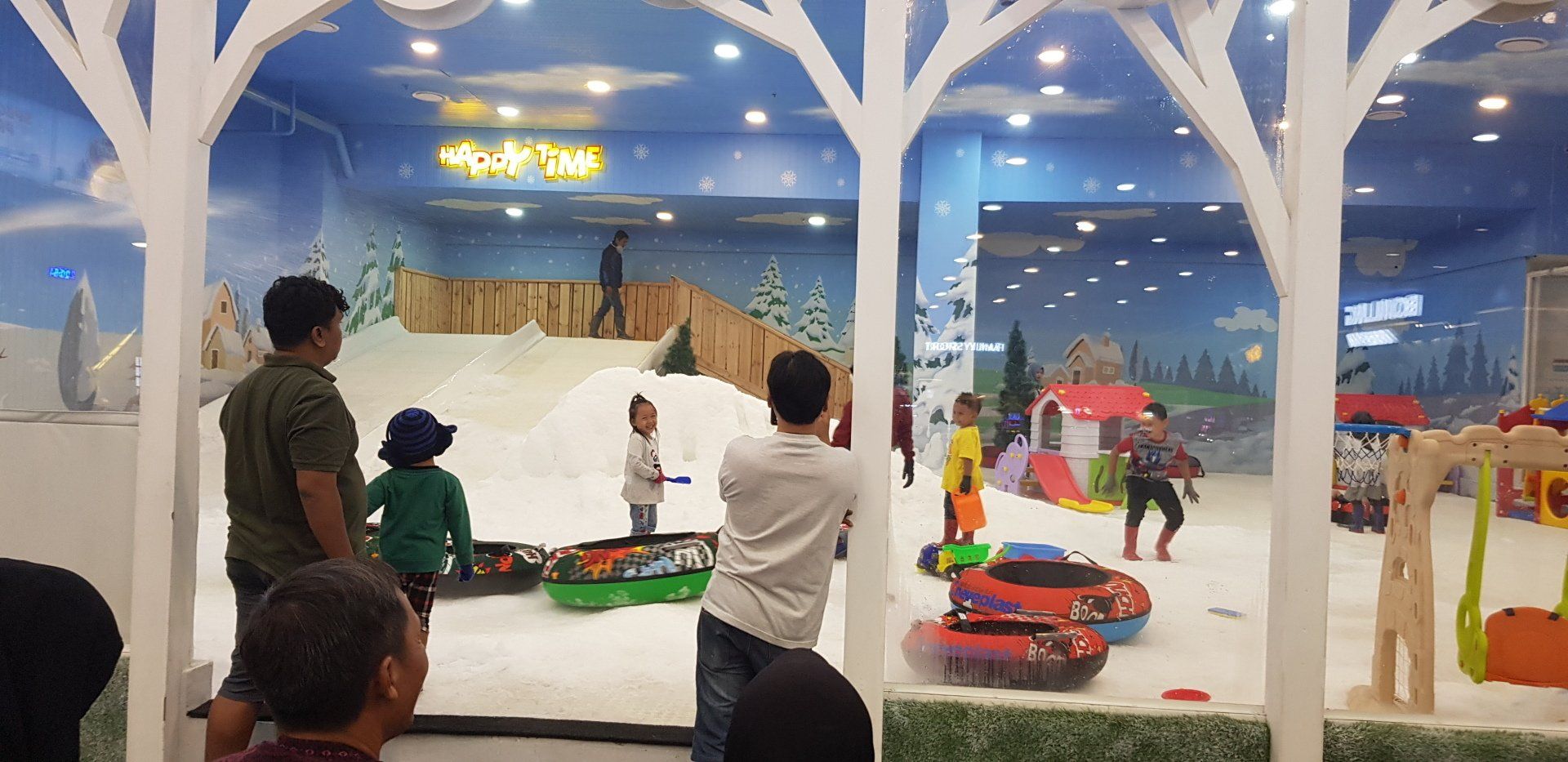

Reifenrutschen Schneeland

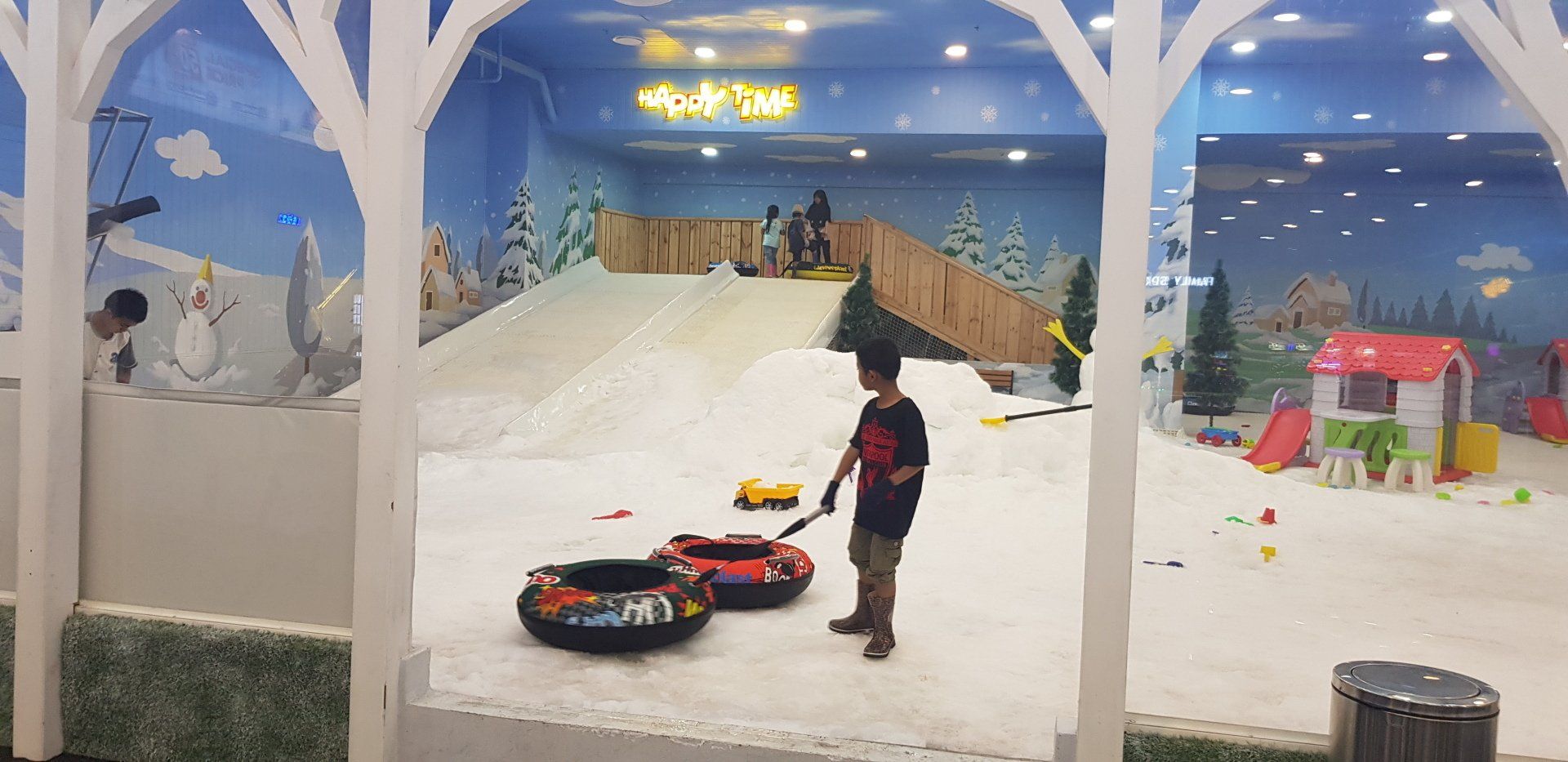

Reifenrutschen Schneeland

Expansion pack with rocks, backlit foils, polar animals

With our solutions, you can turn the snow surface into an event – for young and old! The walls can be customized on-site with individual designs, offering many possibilities – as does the selection of additional products.

Install rock walls – even with Arctic animals.

Penguins

Polar bears

Arctic wolves

Kunstvögel

Design your lighting creatively

for walls, ceilings and other room elements

Backlit foil system

with LED strips at the rear

Eisland
Gletscher

Ice rink package

Ice rink package consisting of ice floor, boards, ice rink, glycol, insulation

Eisfeld

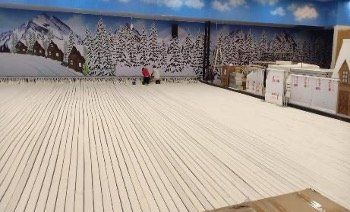

EPDM strips in white

supplied with collector pipes

in a metal frame

are placed in a "basin".

can be flexibly disassembled

Flexible and easily disassembled

Ice making in the NHL League's "PREMIUM WHITE"

Renewal package for White Ice remains on site

Logo in the ice from us and you upon request

Custom-made gang

1m high,

robust construction

8mm PE or transparent PC sheets

robust 30mm handrail

and a 25 cm high bumper strip

Curves or corners

Entrance gates where it fits

either in transparent - VISUAL or in PE "Traditional WHITE"

Insulated manifolds

executed according to the 3-pipe Tichelmann principle

Accesories

Ice preparation, ice skates, racks & skate sharpening, skating aids

Set of rental ice skates on shelves

Ice skate sharpening machine

Ice skating learning aids to help non-skates

Manual ice preparation (ice scraper)

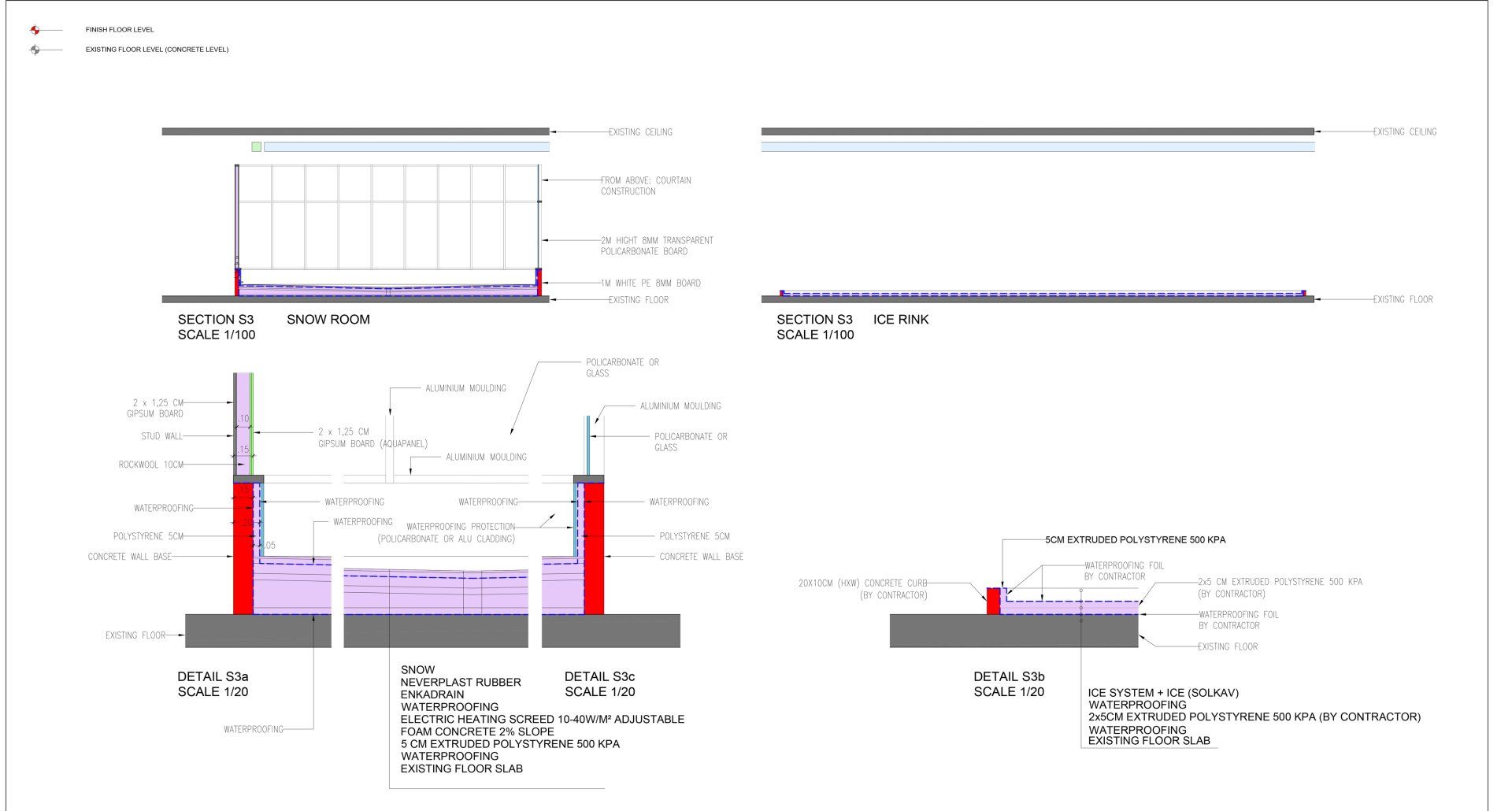

Tabelle
Schuhablage

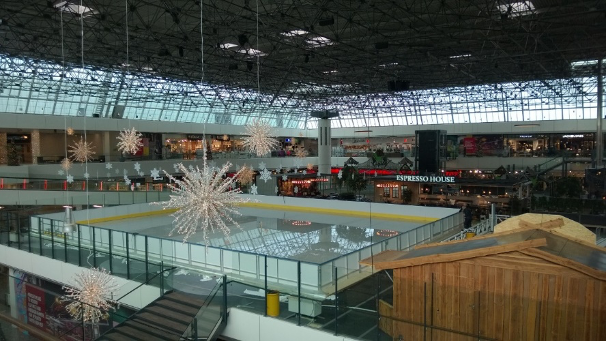

Eislaufplatz

Ice-making machines

electric ice shaver

Tabelle
Eismaschine

Slides / Tobogganing and other activities

Canal ice slide: structure, ice floor, sled

Canal ice slide with

18 m net length ice

and in total including the starting area

and landing area: 26m

three lines in the standard

4.te Optional line

including sledding

the channel is iced up inside and connected to the cooling system

including stairs for standing up and starting platform

Fast and slow speed lines

Tire ice slide

Structure, ice floor, tires, tire ice slide with

12m net length of ice (total including starting area and landing area: 20m)

6m wide slide

as a foil

including tires for sliding

The sliding surface is iced over and connected to a cooling system.

Outside the band

including stairs for standing up and starting platform

Eisrutsche
Eisrutsche

Eiskarting | Boarding | Electro Karts

An ice rink can be made

artificial design

Follow

a kart design

The delivery includes 8 electric go-karts and chargers.

Inner barriers for separation and safety

Eis Gokart
Schneelandschaft

Summary of the attractions

After analyzing your individual situation, we can recommend different options.


Here are some examples:

1. Snow Play Ground with Snow Slide / Size 250

2. Ice rink for children and teenagers / Size 300

3. Ice slide for all ages/sizes, 3 channels of 18m each

Service & Support Package

The support package is included in the setup fee / installation fee.

Definitions for soil, pipe ducts, pipelines, sewer system, electricity, water, etc.

Custom technical design for snow and ice specials, attractions, themes, decoration, including rocks, decoration and lighting packages.

On-site visits to train the customer and their contractors (max. 3 free of charge)

Cart design support for clients, architects and building contractors via the internet, email, and WhatsApp.

Technicians must be sent for installation and commissioning.

Services to be provided locally:

All construction work; exterior glazing, flooring, underfloor heating, air duct systems;

Transport equipment: crane, forklift, scaffolding, etc.

Helpers for the work; local refrigeration and electrical specialist for commissioning

Operator for the system (English-speaking) with a technical background

All utility companies provide electricity, water, sewage, data, internet

Outside the engine room/container, such as piping, cabling, drainage, etc.

Air ducts, starting at the inlet and outlet of the machines

Flight, accommodation, internet infrastructure for Solkav employees, transport to the construction site

e.g. piping:
